supported battery types: 10440 - 14500 - 14650 - 16340 - 17670 - 18350 - 18500 - 18650 (ICR18650-26) - 18700 - 22650 - 25500 - 26650 / 3.0 - 3.2 V, 3.6 V - 3.7 V, 3.8 V Li-ion batteries
input power: 12.0 VDC / 1.0 A
charge current options:
- 0.25 A constant current: 250 ± 30 mA
- 0.5 A constant current: 500 ± 50 mA
- 1.0 A constant current: 1000 ± 80 mA
corresponding termination voltage for three voltage options:
- 3.2 V: 3.6 ± 0.05 V
- 3.6 V: 4.2 ± 0.05 V
- 3.8 V: 4.35 ± 0.05 V
TC of 0.25 / 0.5 A: <= 50 mA
TC of 1.0 A: <= 80 mA
automatic restart charge:
- 3.2 V voltage gear: 3.3 ± 0.15 V
- 3.6 / 3.8 V voltage gear: 3.9 ± 0.15 V
voltage display precision: ± 0.03 V
operating temperature: 0-40 °C
USB output parameter:
- USB output voltage: 5.0 ± 0.3 V
- max. USB out current: 1000 mA
- battery overcharge discharge protection voltage: 3.0 ± 0.2 V
dimensions: 135 x 68 x 35 mm
3 charging current options: 0.25 / 0.5 / 1.0 A
3 charging voltage options: 3.2 / 3.6 / 3.8 V
supports multiple battery types
low-voltage, overload and overheat protection, power indication
LED status indications
real-time status display
PWM technology controls DC-DC circuit, lowers the voltage and reduces energy loss
three-stage charging (TC-CC-CV) and 0V function to reactivate over-discharged batteries
IC temperature monitor prevents overheating
soft start charging
compact size, portable
reverse polarity and short circuit protection circuit
weight: 125 g

Batteries not included

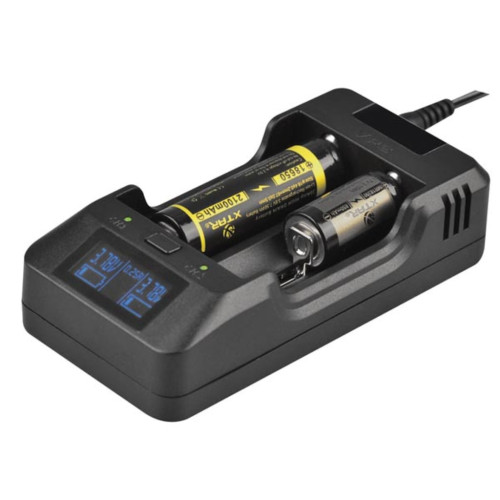

MULTI-FUNCTIONAL Li-ION BATTERY CHARGER

Qty

R 1,333.66
