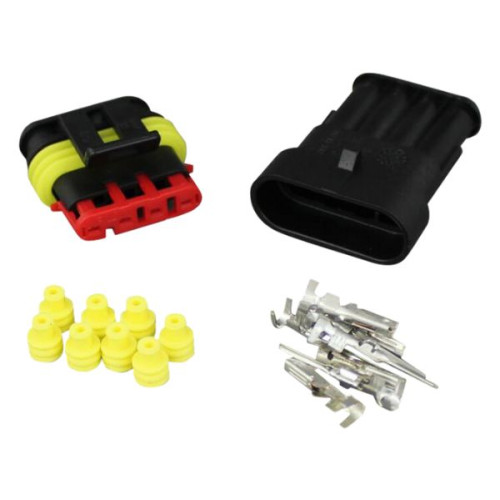

4-Way Superseal 1.5 Series compact, high quality connector designed for automotive, marine and other low voltage applications where a waterproof joint is required. Their sealing reliability under harsh conditions is well proven and they are especially suited for use in engine bay environments.

Suitable for cables from 0.5 - 1.5mm². Male tab and female receptacle terminals are crimped onto the cables and then inserted into the the connector housings. A secondary lock ensures that the terminals are properly located (lock cannot be closed unless terminals are fully seated) and prevents them backing out of the housings.

Note: Male tab terminals fit into the female connector housing and vice-versa.

Electrical specifications

• Current rating: 14A max.

• Voltage rating: 24V DC max.
• Ingress Protection (IP) rating: IP67
