- Current rating: 3 A AC/DC（AWG #22）
- Voltage rating: 250 V AC/DC
- Temperature range: -25℃ to +85℃
- Contact resistance: Initial value/ 10 mΩ max. After environmental tests/ 20 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: There shall be no breakdown or flashover while applying 1,000 VAC for one minute.
- Conductor size/ AWG #30 to AWG #22

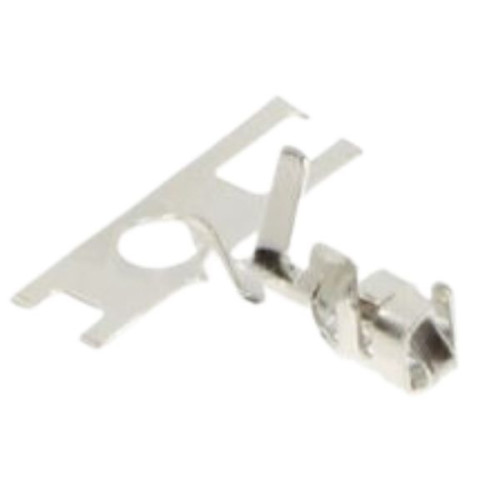

CRIMP TERMINALS FOR JS-2001 HOUSING
- Product Code: NAM0193
- Availability: In Stock
-
R 2.90
- Ex Tax: R 2.52
Tags: CONNECTOR HOUSINGS INSERTS, WIRE-TO-BOARD CONNECTORS, YY05, JST-TYPE
