Key Features
Input voltage:4.5-35V
Output voltage:1.5-35V
(Adjustable) Output current: Rated current is 2A,maximum 3A(Additional heatsink is required)
Features: Conversion Efficiency: Up to 92% (output voltage higher, the higher the efficiency)
Switching Frequency: 150KHz Rectifier Non-Synchronous Rectification Module Properties
Non-isolated step-down module (buck)
Short Circuit Protection: Current limiting
Dimension: 43*20*14mm (L*W*H)
Input voltage:4.5-35V
Output voltage:1.5-35V
(Adjustable) Output current: Rated current is 2A,maximum 3A(Additional heatsink is required)
Features: Conversion Efficiency: Up to 92% (output voltage higher, the higher the efficiency)
Switching Frequency: 150KHz Rectifier Non-Synchronous Rectification Module Properties
Non-isolated step-down module (buck)
Short Circuit Protection: Current limiting
Dimension: 43*20*14mm (L*W*H)

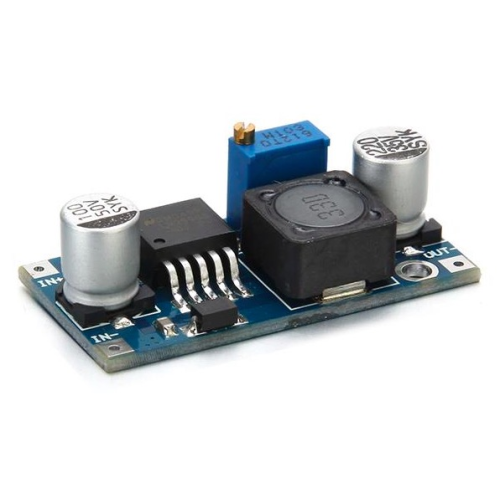

DC-DC Step Down Converter In=4.5-30V Out=1.5-35V 2A LM2596
- Brand: Generic
- R0362
- In Stock
-
R 69.00
- Ex Tax: R 60.00
