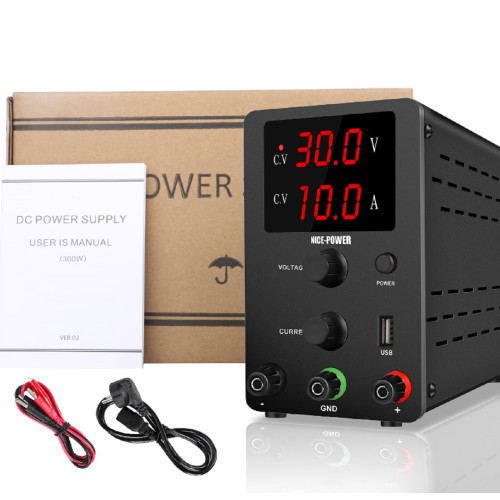

The SPS series is a Digital display mini DC power supply that simultaneously displays voltage, current.

Product Features:

• Small size, light weight and high power density.
• Constant voltage, constant current automatic switching.
• Voltage, current, power
• Temperature controlled fan heat dissipation, low noise and long life

Application field:

• 1. Production line testing.
• 2. Mobile phone, computer, electrical maintenance.
• 3. Product aging, plating.
• 4. Charge the battery.
• 5. Laboratory, research and teaching.
• 6. Everything else needs a DC regulated power supply.

Specification:

• Model: RSPS3010D
• Output Voltage: 0 ~ 30V
• Output Current: 0 ~ 10A
• Voltage Resolution: 0.1V
• Current Resolution: 0.01A
• Ripple Voltage: Vpp≤1%
• Power Effect: CV≤1%+10mV
• Effect of Load: CV≤1%+10mV
• Digital Display: 3 LED Digital Display
• Ripple Noise: ≤1 MV
• Voltage Display Precision: ±1% + 1 digits
• Current Display Precision: ±1% + 2 digits
• Operating Environment: -10~45℃ /14~113℉ Rh≤90%
• Storage Environment: -20~60℃ /4~140℉ Rh≤80%
• Weight:1595g
• Size:95 * 200 * 140mm
