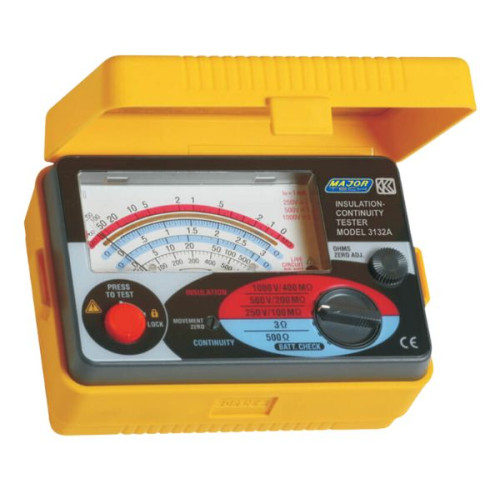

The K3132 is an Analogue Insulation Tester highly compact and easy to use. Designed to have an IP protection rating of IP54 and is ideally suited to more arduous environments. The instrument offers three insulation test ranges: 250V, 500V and 1000V, 3Ω and 500Ω Continuity range. This meter is not only equipped with a “Live Circuit Warning” but also displays the actual AC voltage measurements of the mains supply.

Features

• Three test ranges 250V – 500V – 1000V

• Resistance to 500Ω
• Auto null function
• AC voltage measurements to 600V
• Live circuit warning
• Lock down Test Button for continuous use
• 1-2mA output current on insulation test
• 200mA short measuring current on continuity range

Accessories

• Pouch for leads
• AA batteries
• Test leads
• Instruction Manual
• Strap
• MTMAG
