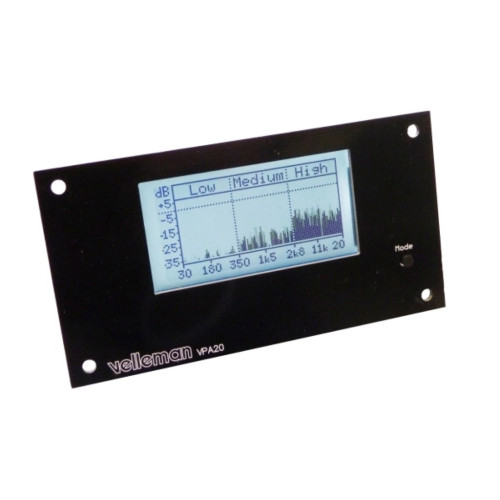

Small and compact unit, ideal for panel mounting. Give your homemade audio gear a high-tech look. Upgrade existing equipment.
Specifications
- power measurement into 2, 4 or 8 ohms + bridged amp option
- range: 300mW to 1200W @ 2 ohms
- sensitivity: -34dBu (15.5 mVrms)
- max. input level: 50Vrms @ 220k
- frequency range: 20Hz to 20kHz
- power supply: 12VDC / 75mA
- dimensions:
- display: 128 x 64 pixels (46 x 23mm / 1.8 x 0.90")
- front panel: 98 x 51mm / 3.8 x 2"
- mounting depth: 35mm / 1.37"
- measure:
- peak power
- RMS power
- mean dB
- peak dB
- linear audio spectrum
- 1/3 octave audio spectrum
- auto or manual range selection
- peak-hold function
- speaker impedance selection
- language selection
- white backlit LCD
- easy panel mounting
