- temperature range:
- °C: -18°C ~ + 60°C
- °F: 0°F ~ +146°F
- temperature resolution: ± 0.5°C or ± 2°F
- accuracy: +/- 2°C, fine tune till +/- 0,5°C
- readout update interval: 1 second
- relay contact: NO - 3A (max. 230V)
- power supply: 9 - 12V DC
- power consumption: < 70mA
- dimensions:
- panel module: 67x40.5 mm / 2.6x1.6"
- cut-out: 54x37 mm / 2.1x1.5"
- mounting depth: 40mm / 1.6"
- weight: 50g

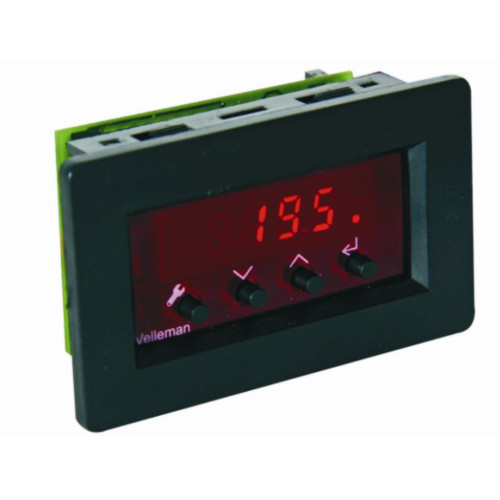

- general purpose panel mount thermostat
- usable for heating or cooling purposes, (central heating, airco, incubator,… )
- separate output-ON and output-OFF setting (hysteresis)
- direct manual temperature adjustment
- bright red LED read-out

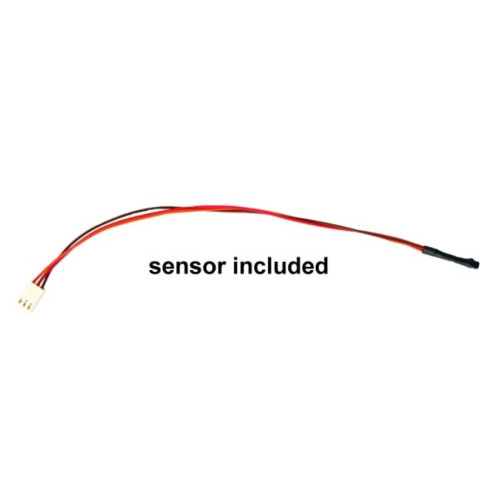

- comes with easy board-to-wire connectors and sensor (20cm wire)
- calibrate option
- under- and overflow indication
